What Is a CNC Turn Mill Center?
A CNC turn-mill center is a highly advanced machine that integrates both turning and milling operations into a single unit. This combination allows manufacturers to perform multiple machining processes without moving the workpiece between different machines, which greatly improves efficiency and precision. These milling-turning centers are specially designed to handle complex and precise parts, making them indispensable in industries like automotive, aerospace, and tooling. By combining the rotating workpiece capability of a lathe with the multi-axis cutting tools of a milling machine, CNC turn-mill centers can perform a wide range of operations, such as turning, milling, drilling, and tapping, all in one setup.

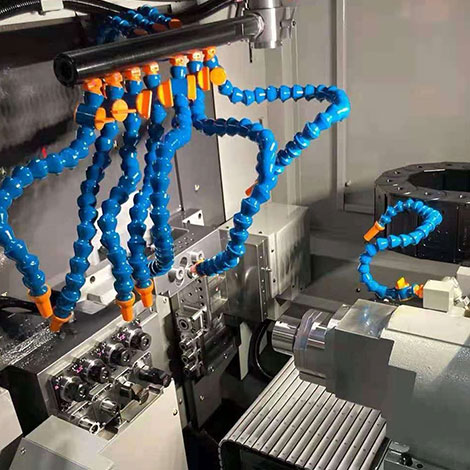

Functionally, a turning-milling center works by rotating the workpiece and simultaneously moving the cutting tools around it to mill specific features. Advanced models include multiple axes, such as X, Y, Z linear axes and C and W rotary axes, and often feature multiple spindles and turrets for added flexibility. This setup enables the machining of complex geometries, including off-center features and curved surfaces, all while maintaining tight tolerances. The integration of these processes reduces production time, minimizes errors, and enables manufacturers to create intricate parts more efficiently than ever before.

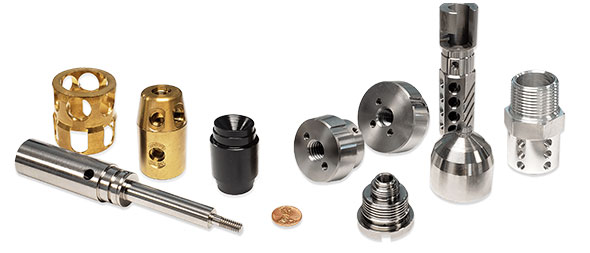

Applications of the Milling-Turning Services and Parts
- Automotive: Engine components, gears, and other critical car parts that require high precision and consistency.
- Aerospace: Intricate airplane parts like turbine blades, landing gear, and structural parts with strict tolerance and complexity requirements.
- Electronics: Miniaturized and detailed electrical components and products with tiny, complex features.
- Medical: Implants and devices that have shapes requiring both turning and milling.

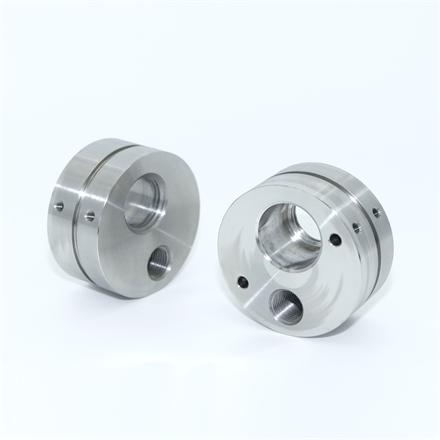

- General Manufacturing: Parts that combine cylindrical features with detailed milling needs.
Milling vs Turning vs Mill-Turn Machining
Milling, turning, and mill-turn are three types of CNC machining processes, each with distinct ways of removing material and different ideal applications. All three are subtractive manufacturing methods, meaning they cut away material from a workpiece, unlike additive methods like 3D printing that build material up. The main difference lies in which part rotates during machining, either the cutting tool or the workpiece, and how the machine is configured to shape the part.
Milling is the most widely used process. In milling, the cutting tool spins rapidly while the workpiece is either held still or moves along specific paths. Milling machines vary from simple 2-axis models that cut basic holes and slots to complex multiaxis centers that can handle intricate shapes by combining linear movement with rotational axes. Vertical milling machines have the spindle (the rotating cutter) positioned above the workpiece, while horizontal mills orient the spindle sideways. Milling is versatile and ideal for shaping flat surfaces, slots, holes, and complex 3D contours.
Turning, on the other hand, involves spinning the workpiece itself while a stationary, single-point cutting tool removes material. This method is perfect for creating cylindrical or symmetrical parts such as shafts, rods, and threaded components. Lathes are also capable of additional operations like drilling, boring, and grooving. Because the workpiece rotates, turning is especially suited for parts that need radial symmetry or are too large for other machines to handle easily.
Mill-turn machines are hybrids that combine the rotating tool of milling with the rotating workpiece of turning. This combination allows for highly complex parts to be machined in one setup, significantly reducing the time and need for multiple machines. Mill-turn centers can perform multiple operations without changing the workpiece’s position. This makes mill-turn ideal for parts requiring both milling and turning features, especially when complexity or production speed is critical.
Which One to Choose?
- Use milling when you need to create flat surfaces, slots, holes, or complex 3D shapes where the cutter needs to move around a mostly fixed part.
- Choose turning if your part is primarily cylindrical or symmetrical around an axis, such as shafts or threaded rods, and when you need efficient machining of round profiles.
- Opt for mill-turn when your part requires both milling and turning operations, especially for intricate designs or when you want to reduce setup times by machining everything in a single machine.
