Do you need mechanical parts made of copper 110? Does it machinable? In this article, CNClathing.com will introduce what is 110 copper with its properties and the difference between copper 101 and 110. We can provide cost-effective CNC machining solutions to meet your requirements of copper parts. Learn about the characteristics of Copper CDA 110 in the text and data sheet.

What is 110 Copper?

110 copper, an electrolytic tough pitch (ETP) Copper, also known as UNS C11000 and CDA 110, contains 99.99% copper. Copper alloy 110 can be available in lots of shapes, like rounds, squares, flats, sheets, and plates. Due to the outstanding mechanical properties, Cu-ETP is versatile to be made as CNC machining copper parts used in a variety of applications, especially the electrical devices and products like cables, overhead line conductors, generator windings, and coaxial lines, thanks to its high electrical conductivity.

Copper Alloy 110 Properties - Features of CDA 110

– Excellent electrical and thermal conductivity

– High corrosion resistance

– High ductility

– Anneal resistant

– Readily cold worked

– Not susceptible to embrittlement when heated

– Great hot and cold forming characteristics

– Good forgeability

Applications of 110 Copper

What is 110 copper used for? Copper 110 is perfect for electronic applications requiring free from damage and pollution by harmful impurities and oxides. 110 copper can also be applied for a diversity of products and industries, such as heat exchanger components, automotive spark plug electrodes, plumbing fittings, electrical components, waveguides, base plates, bus bars, blade and ring terminals, cables, power transmission components, resistance welding electrodes, terminals, components for vacuum devices, switches, interrupters, deposition units, electron tubes, glass-to-metal seals, superconductive magnets parts and more.

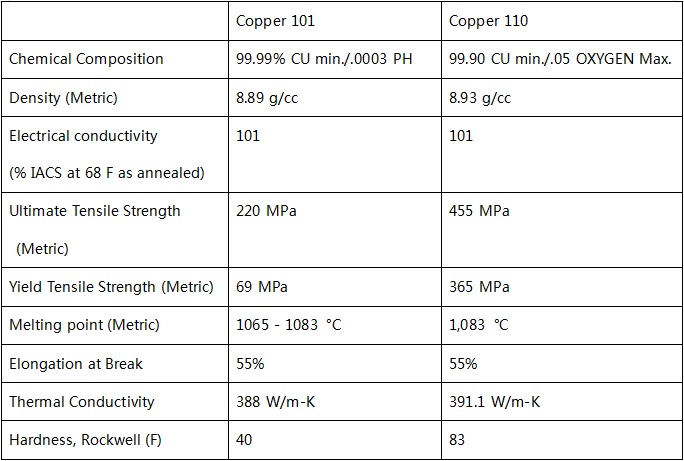

Copper 101 vs 110 - Difference Between Copper 101 and 110

We’ll compare copper 110 and 101 from many aspects as below, including chemical composition, density, tensile strength, yield strength, hardness, and more.
