JUNYING IC Core SFIC Cylinder

JUNYING IC Core SFIC Cylinder – Door Lock Small Format Interchangeable Core, Keyway & Finishes.
  • Customer’s logo available
  • Color box packed available
  • Provide samples – Provide samples for reference
  • USD200 free shipping by DHL,FEDEX,UPS for Global
  • Quick response – We will reply your inquiry as soon as possible
  • After-sales service – To make sure our customers are satisfied with their order

Company Profile

Junying has been engaged in the lock industry for more than 13 years. Our self-developed IC core (SFIC cylinder) is widely used in major brands. Quality control has always been our philosophy in a long-term cooperation. Junying Small Format Interchangeable Core lock cylinder (SFIC cylinders) is manufactured in our state-of-the-art machine shop with high precision multi-axis CNC machining facility (CNC milling centers, lathes, drills, etc.) We have our own CNC Machining center and quality inspection center. Therefore, we can achieve fast delivery and high-quality commitment. Our IC core (SFIC cylinder) can be applied to the Best lock core, combined core, Falcon IC cores, Yale interchangeable core, and one engineering key can be equipped with 100,000 sets of lock cores, which is convenient for installation and management. IC core (SFIC cylinder) can be used in door locks, padlocks, cabinet locks, drawer locks, electric box locks, and all American standard lock cylinders. Wide application range and convenient installation.

1. Product Description

what is ic core?

IC Core, short for “interchangeable core,” is a style of lock that has a cylinder that can easily be replaced within a matter of seconds by use of a unique “control key.” IC Cores have a distinctive figure-8 shape, and can accommodate a multitude of key shapes and styles.

How do IC cores help us?

– Locks can be changed (rekeyed) in seconds with no training

– More sure than standard locks (harder to pick or bump)

– Can be master keyed, increasing flexibility and reducing keys

– Key duplication is much more difficult than standard locks

– An extra set of cores can be kept on hand for fast swapping

Key Features

SFIC Rekeyable Interchangeable Core

* IC core is also suitable for lockset and lever set replacement

* Usable to Mortise Cylinder, Cylindrical Lock, Euro Profile Cylinder, Oval Cylinder, Padlock, Cam Lock, etc.

* Brass material

* Cylinder with interchangeable & re-keyable cylinder core

* With 1 control key and 2 operating keys

* A specialized “control” key for insertion and extraction of the core

* The cylinder core with 6-pin or 7-pin tumbler mechanism

* 1,000,000 key combinations of 6-pin cylinder

* 10,000,000 key combinations of 7-pin cylinder

* No screwdriver and tool needed

* Zero-bitted (Unpinned-no pins & springs) / Keyed alike (KA) / MK / GMK / GGMK / GGGMK system for optional order

* Different keyway available (Keyway: A, B, C, D, E, F, G, H, J, K, L, M, N, Q, WA, WB, WC, WG, TB available)

* Different surface finished available (US03, US04, US10B, US15, US26, US26D, US32, US32D)

* Construction key function available

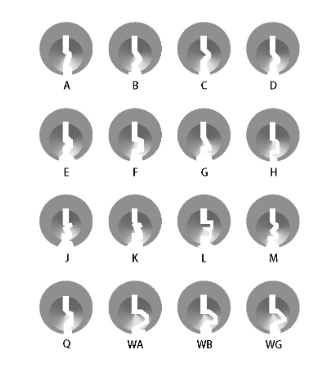

Junying Keyway Types

CNC Machining Capabilities

Color Card

  • US03 – Bright Brass
  • US04 – Satin Brass
  • US10B – Dark Bronze
  • US15 – Satin Nickel
  • US26 – Bright Chrome
  • US26D – Satin Chrome
  • US32 – Bright Stainless Steel
  • US32D – Satin Stainless Steel

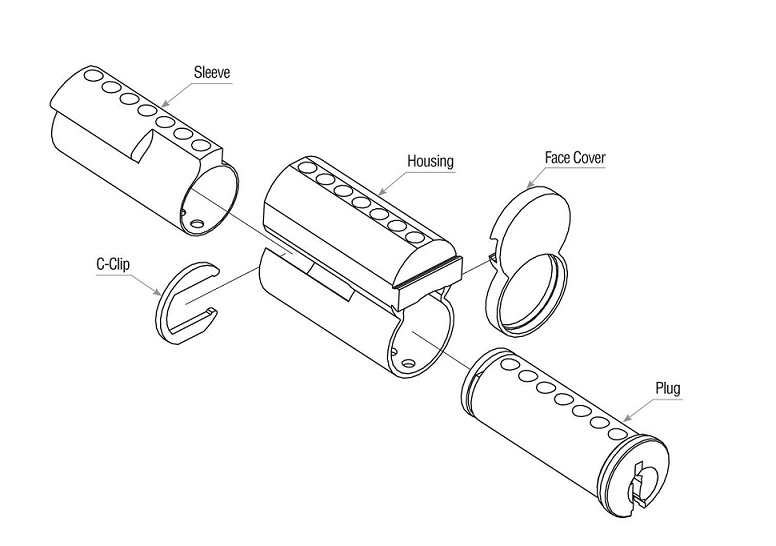

SFIC cores assembly

If you are an end user, please click here to buy directly.

2. Our Product Advantages – Why Choose Junying SFIC Cylinder

2.1 One engineering key can fit 100,000 lock cylinders

2.2 Quality Certification

ISO 9001:2015, CE:SHBST100665461231

2.3 Product life

10 years or 1000000 times

Durability grade 6:100 1,000,000 cycles.

2.4 Our Business Partner

3. Product Uses & Applications

– Applicable brand lock cylinder: Best IC core, Combined core, Falcon IC cores, Interchangeable core, Sargent IC core, Schlage IC core, Yale interchangeable core

– Applicable lock range: door locks, padlocks, cabinet locks, drawer locks, electric box locks,cam locks.

– Applicable standards: American Standard and European Standard

4. After-sales Service

– 24-hour online communication with customers to solve problems

– Unconditional return of any quality problems

– The shelf life is 5 years

– Free help to solve any problems encountered during the actual operation
